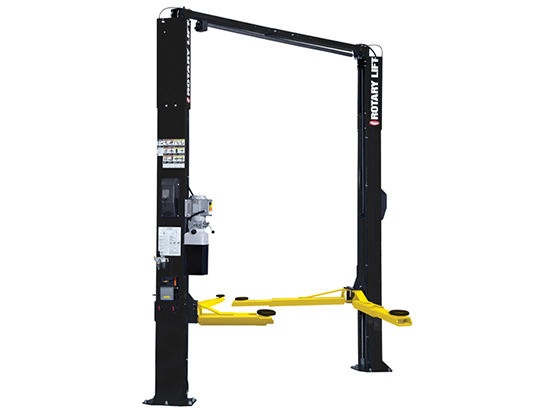

10,000 lb. 2-Post Asymmetric Lift, Trio Arms, Round Adapters

USD $6,969.00

Rotary Lift

Click to see additional Options / Models / Accessories Available

Request a call


Two-Post Surface-Mounted Lift, Asymmetric, Trio Arms, Round Rubber Adapters.



  • 10,000 lbs. lifting capacity.
  • Round rubber adapters with vertical adjustment, ideal for lifting vehicles of unibody construction.
  • Asymmetric lift design, featuring factory-rotated columns to maximize door-opening clearance for passenger cars.
  • TRIO arm design, has maximum reach and retraction to handle a broader range of vehicles.
  • Rotary designed and built power units instead of using third party power units for universal applications.
  • High-pressure, full-stroke cylinders in both columns.
  • Multi-position column locks engage every 4 inches.
  • Original “Double S” single-piece column design maximizes column strength.
  • Slider bearings of Tivar 1000 polyethylene are self-lubricating and maintenance free.



Drive-over height 3-31/32 inch
Load carrying capacity 10,000 lbs
Oil fill capacity 4 gallons
Lifting/lowering time approx. 45/40 s
Weight approx. 1,600 lbs
Color Blue or red
Power supply 208-230 / 60 / 20 V/Hz/A



39-T100271 Adapter Extension Kit for Trio Arms $432.00 Add to cart
39-T100273 Truck Adapters for Trio Arms $570.00 Add to cart
